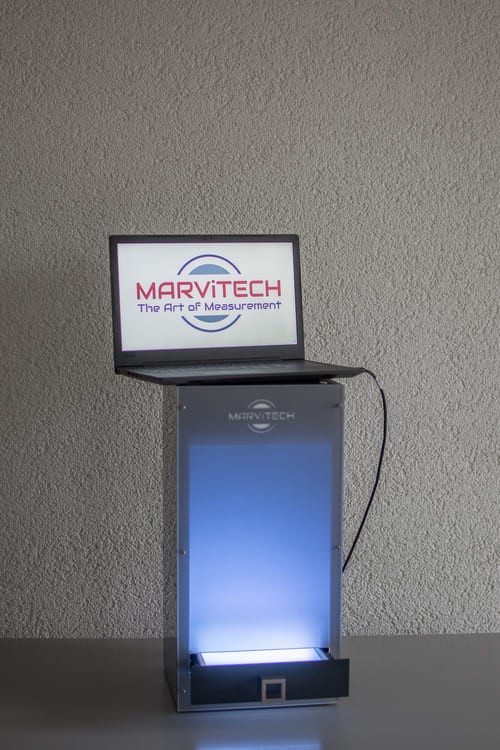

MARVIN CompactLine seed analyzer
# for grain dimensions from 0.2 mm (cereals, vegetables, flowers, oil-seeds etc)
# counting accuracy least 99%
# very fast measuring time < 3 sec.
# resolution 100μm or smaller
# group mode for higher numbers of samples
# below light measuring
# MARViN6 software

Measuring of:
- total number of the sample
- thousand grain weight (TGW) - with excluded scale
- grain dimension (length, width, area)
- determination of dark or bright seeds (for flat seeds)

Determination of:
- size fractions (length, width, area)
- hectoliter weight
- single seed data

Plausibility check:
- formular editor to calculate limit parameter
- formular editor to create new calculated parameter

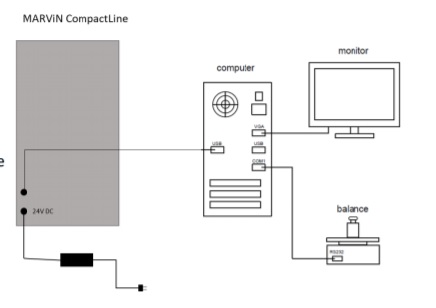

Preconfigured connecting and controlling of:
- electronic scales
- printer
- barcode-reader

Data export for:
- all measuring data
- *.csv, *.txt, *.xls Format
- database

Operation device:
- dimensions (LxWxH): ca. 28x26x55cm
- seed tray:ca. 18x18cm
- power supply 100-240V (50-60Hz) with external power unit
- high resolution CMOS digital camera with USB interface
- eloxated steel cover with powder coating
